Product Details
Place of Origin: CHINA
Brand Name: TGFQ
Model Number: E320B 320B E320 320
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: 200.00-800.00USD
Packaging Details: NNER PACKING: Wrap by plastic film, clear label for each item. OUTER PACKING: Carton or Plywood Case PACKING SIZE: Depend on packing type
Delivery Time: 1-3days
Payment Terms: L/C, T/T, D/P, D/A
Supply Ability: 500 pcs / month
Product Name: |
320 Excavator Swing Gearbox |
Model: |
E320B 320B E320 320 |
Part Number: |
114-1320 |
Shaft: |
13/20T |
Applicable Industries: |
Machinery Repair Shops, Energy & Mining |
Package Size: |
53*53*65 CM |
Product Name: |
320 Excavator Swing Gearbox |
Model: |
E320B 320B E320 320 |
Part Number: |
114-1320 |
Shaft: |
13/20T |
Applicable Industries: |
Machinery Repair Shops, Energy & Mining |
Package Size: |
53*53*65 CM |
E320B 320B 320 Excavator Swing Reducer Gearbox Slewing Gearbox
Quick Details |
| Model:E320B 320B E320 320 |
| Brand: TGFQ |
| Part Number: 114-1320 |
| Part Name: Excavator SwingGearbox Parts |
| Weight: 200KG |
| Process: Heat Treatment |

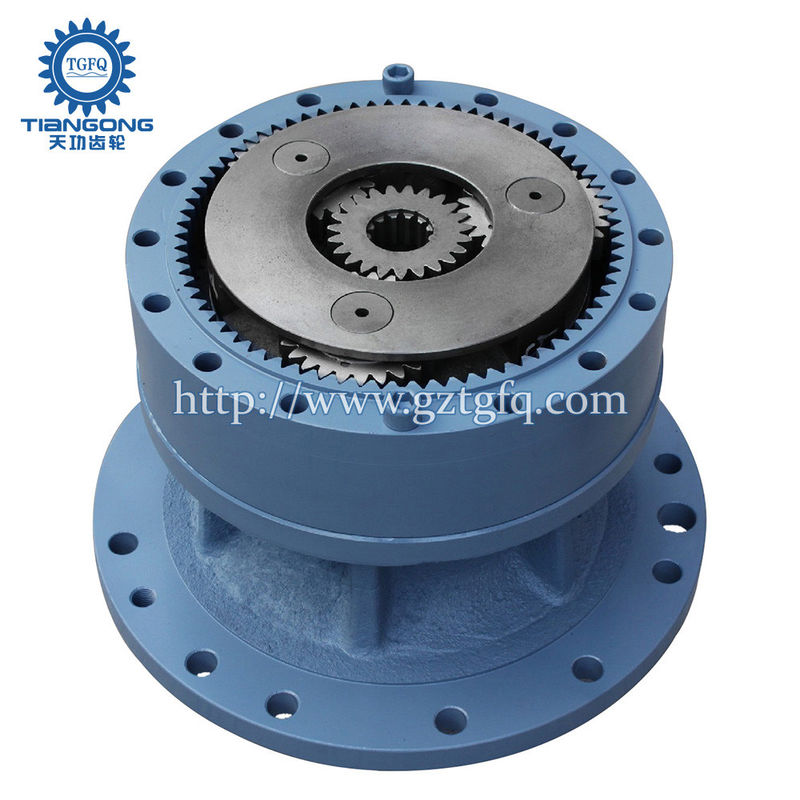

Product Photo:
Drawing:
| Pos. | Part No | Qty | Parts name |
| 1 | 094-0584 | [12] | WASHER (40.3X72X1-MM THK) |
| 2 | 7Y-1764 | [3] | SHAFT-PLANETARY |
| 3 | 7Y-1644 | [3] | GEAR-PLANETARY |
| 4 | 114-1581 | [1] | SPACER (57.5X74X6-MM THK) |
| 5 | 7Y-1643 | [1] | GEAR-SUN |
| 6 | 093-1729 | [2] | RING-RETAINING |
| 7 | 7Y-1751 | [1] | CARRIER-PLANETARY |
| 8 | 6V-3532 M | [1] | BOLT (M20X2.5X60-MM) |
| 9 | 7Y-1765 | [1] | LOCKWASHER |
| 10 | 127-5969 | [1] | GEAR-SUN |
| 11 | 7Y-1752 | [1] | CARRIER-PLANETARY |
| 12 | 7Y-1777 | [1] | RETAINER |
| 13 | 7Y-1755 | [1] | GEAR-RING |
| 14 | 4D-7956 | [1] | RACE-ROLLER BEARING |
| 15 | 4L-0734 | [1] | RACE & ROLLER AS |
| 16 | 7Y-1772 | [1] | CAGE |
| 17 | 8T-4183 M | [6] | BOLT (M12X1.75X40-MM) |
| 18 | 8T-4223 | [6] | WASHER-HARD (13.5X25.5X3-MM THK) |
| 19 | 7Y-1766 | [2] | SEAL-LIP TYPE |
| 20 | 7Y-1775 | [1] | SHAFT-PINION |
| 21 | 095-1022 | [1] | BEARING-ROLLER |
| 22 | 114-1335 | [1] | HOUSING |
| 23 | 1U-8846 B | SEALANT-GASKET | |
| 24 | 096-4837 | [7] | PIN-SPRING |
| 25 | 3K-0360 | [1] | SEAL-O-RING |
| 26 | 7E-4761 | [1] | VALVE-DRAIN |
| 27 | 7Y-1646 | [3] | SHAFT-PLANETARY |
| 28 | 7Y-1756 | [3] | BEARING AS-ROLLER |
| 29 | 127-5970 | [3] | GEAR-PLANETARY |
| 30 | 094-1516 | [3] | BEARING-ROLLER |
| 31 | 7Y-1759 B | [5] | SHIM (0.1-MM) |
| 7Y-1760 B | [2] | SHIM (0.3-MM) | |
| 7Y-1761 B | [1] | SHIM (0.5-MM) | |
| 7Y-1762 B | [1] | SHIM (1-MM THK) | |
| 32 | 7Y-1758 | [1] | SPACER (95.1X130X86-MM THK) |
| B | USE AS REQUIRED | ||
| M | METRIC PART |
We have more than 4000 square meters of three-dimensional warehouse and more than 2000 square meters of outdoor warehouse
It ensures that we have sufficient inventory and respond to customers' needs faster. Fast delivery is our advantage
FAQ:
Common problem:
Q: What can you do
A: We can provide you with digging final drive and swing drive motors and reducer gearbox and their parts
Q: Do you accept OEM or ODM?
A: Yes, you just need to provide your logo file or ideas.
Q: Can I order one of our samples for testing first?
A: Of course!
Q: What items we need to know for the offer?
A: Product name,types,Specifiion,dimension, quantity is the main items we need to know before offer. More details information we get, more better price we can supply.
Q: Do you have a factory?
A: Yes, we have our own factory and have 23 years of production experience in the excavated gear industry.
